On paper, the ZenScreen Ink looks like a good match for the travelling creative, offering a 1080p touchscreen and stylus to accompany a laptop. On closer inspection, though, there are a number of issues with the screen that may cause it to lose some of its shine.
For
Sharp picture
Touchscreen
Stylus
Against
Poor colour response
Not particularly bright
What’s an AAAA battery?
Why you can trust Creative Bloq
Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.
Trilogies are so hot right now, with everything from blockbuster movies to sci-fi novels and even gardens of earthly delights coming in packs of three, and Creative Bloq has not been left behind. This review makes up the third and final part (until the inevitable prequels) of a trilogy of ASUS portable monitor reviews. One was an OLED. One had a battery. And this one... is a touchscreen!
It even comes with a stylus, and that’s going to endear it to the devoted CB demographic out there, who are probably more familiar with pen input than any other apart from readers of Fountain and Ballpoint Magazine (incorporating Quill Quarterly).
(Image credit: Ian Evenden)
ASUS ZenScreen Ink MB14AHD review: Key specifications
Swipe to scroll horizontally
Screen:
14in 1080p IPS WLED, 60Hz
Max brightness:
220 nits
Colour depth:
8-bit
Response time:
5ms
Ports:
1x Micro-HDMI, 2x USB-C (DisplyPort 1.2 Alt Mode), tripod socket
Pressure sensitivity:
4,096 levels
Touch sensitivity:
10 points
Dimensions:
324 x 201 x 12.5mm
Weight:
2kg
ASUS ZenScreen Ink MB14AHD review: Design and build
(Image credit: Ian Evenden)

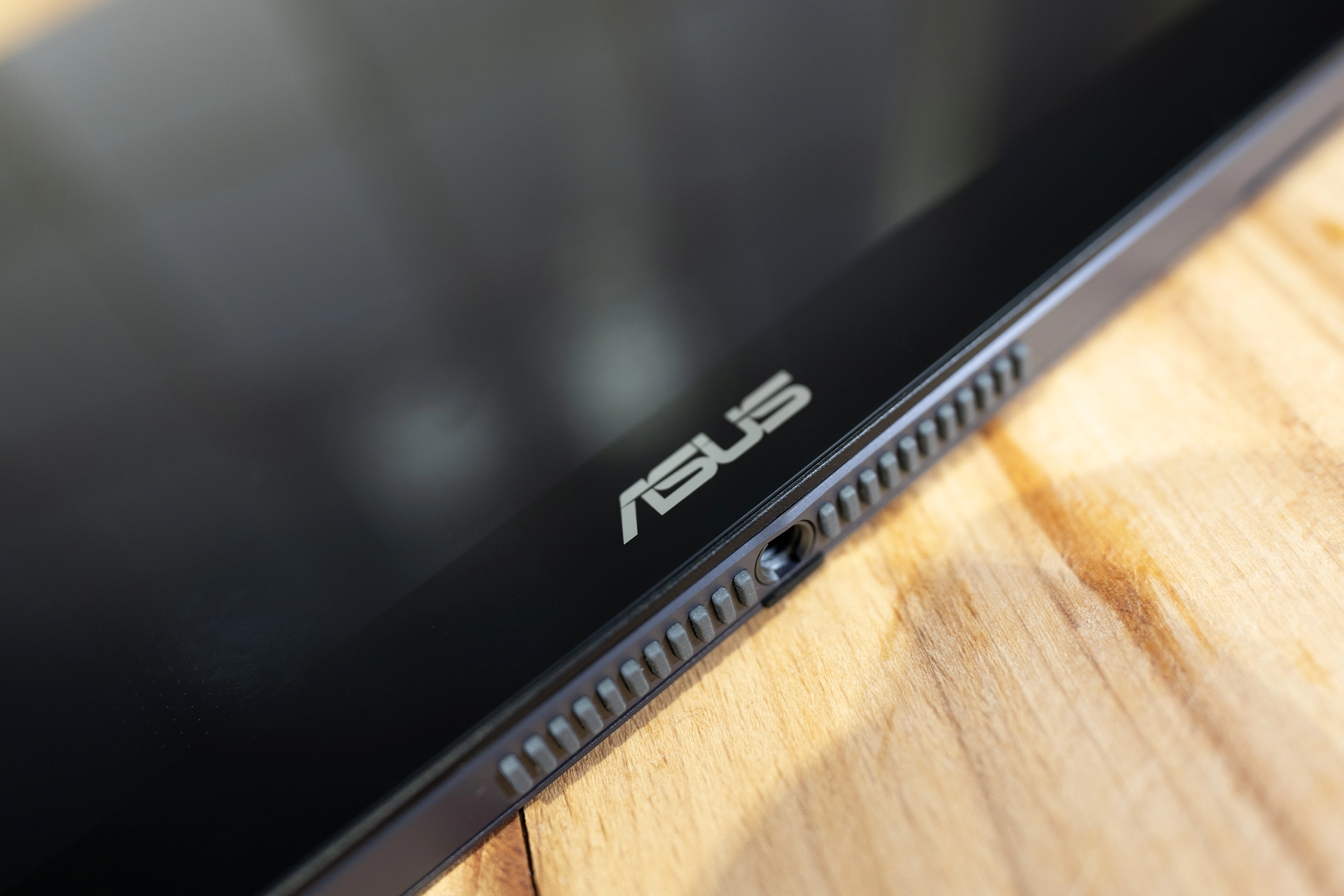

These ASUS portable monitors are always nicely built. This one has a built-in stand and a tripod mount, plus a pair of USB-C ports and a Micro-HDMI. You’ll still need an adapter, but this port alway seems like a better choice than the half-way house of the Mini HDMI. The bezels are slim, the logo is silver, and the ZenScreen Ink comes with a grey fabric case that’s similar enough to an envelope for you to be able to do a Steve Jobs impression, revealing the MacBook Air on stage in 2008.
Slip it out, and it’s a reserved design, corporate grey with all the buttons and inputs down one side. There's a stand that folds out from the back, and which can be rotated through almost (but not quite) 180°. This stand also allows the screen to stand vertically.
The stylus is black, both thicker and shorter than an Apple Pencil but with the same single flat side for magnetic attachment – but not for charging. No, the stylus is powered by a slim battery, an AAAA (a size we’re not sure we even realised existed), and you’ll have to provide one yourself. The end of the pen screws off, revealing a battery compartment with a spring to hold the cell in place. This is not great, given the rechargeable pens on the market, but does at least allow you to replace the battery quickly and get on with what you were doing rather than waiting for a charge to complete.
There's a button at about the point your finger would naturally rest on the shaft, and the tip resembles that of a fibre-tip pen. Microsoft Pen Protocol 2.0 is supported, so you can use it natively in Windows, but you’ll need to connect via USB-C to get it to work. The stylus and touchscreen only work with Windows PCs, so Mac users are left to use it as a plain old monitor if they connect to it.
There are four buttons along the side of the screen for controlling the OSD, and they’re unmarked apart from the top one which is the power switch. This is a bit annoying, as while ASUS is capable of making an easy-to-use menu system – as we saw with the mini joystick control on the ZenScreen Go – stabbing at buttons to discover what they do, then trying to remember that three levels deep in a menu, is sub-optimal.
ASUS ZenScreen Ink MB14AHD review: Performance
(Image credit: Ian Evenden)
As an IPS screen, we can expect decent performance from the ZenScreen ink. A 1080p resolution in a 14-inch form factor gives a decent pixel density, meaning a sharp picture, and the viewing angle is pretty good at around 170°. That’s the good stuff.
ASUS doesn’t give colour response figures for the screen on its website, and there's a reason for that. Under testing with our colourimeter, the ZenScreen Ink managed just 62% of sRGB, 47% of AdobeRGB, and 47% of P3. This clearly isn’t a screen for colour-critical print design work, though it may still have a use alongside a calibrated display. Strapped into the chair for interrogation, it managed to squeeze out a little more than the specified 220 nits of brightness, peaking at 240 nits, but it’s still not a particularly bright screen, and a little more light output could have made up for the poor colour response.
If you’ve got a Mac, then no. There are much cheaper portable monitors out there to accompany your MacBook, and you’d be paying for functionality you’ll never use. If you’re a Windows user with the right kind of connections on your PC to use all its features, and you don’t mind shelling out a few quid for an AAAA battery, then this external, portable touchscreen makes an intriguing proposition, allowing you to fullscreen Photoshop or Painter and work on a composition with the stylus. It may not be a complete replacement for a graphics tablet, but as a portable monitor or second screen to a colour-corrected main display, with extra functionality, it does a good job. We just wish it was brighter.
The Verdict
5
out of 10
Asus ZenScreen Ink MB14AHD
On paper, the ZenScreen Ink looks like a good match for the travelling creative, offering a 1080p touchscreen and stylus to accompany a laptop. On closer inspection, though, there are a number of issues with the screen that may cause it to lose some of its shine.
